DB2-ES542 Mushroom Push Button Switch

XB-ES542 30mm 40mm 10A IP65 turn to release Mushroom Push Button Switch

Quick Details
Place of Origin: Zhejiang, China (Mainland)
Brand Name: XIDER
Model Number: XB-ES542
Protection Level: IP65
Max. Current: 10
Max. Voltage: 660V
Material: Plastic
Button color: Red
Certificate: ROHS CC
Operation type: turn to release

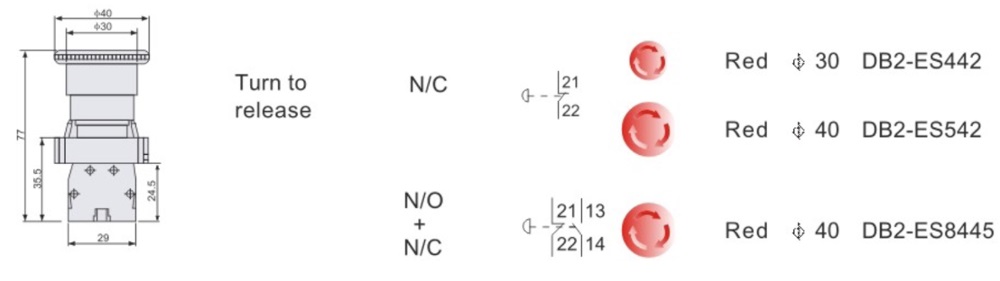

Function: N/C or N/C+N/O

Brief introduction
The XB2 Push Button Switch was used in control circuit of AC 50Hz or 60Hz,voltage to 660V, DC voltage up to 440V below, it is used for controlling signal and interlocking, The main body adopts zinc alloy or high grade anti-flaming plastic, the contact adopts special silver alloy, so it has strong anti-electrical erosion property, the signal lamp series is suitable for electrical appliance circuit of AC voltage 380V, 50Hz or 60Hz, DC voltage up to 380V below, it is used as kinds of lights indication signal, warning signal, accident signal and other signals. Our products comply with GB/T14048.1 and IEC60947-5-1, all products were get CE, RoHS certification.

Work environment
1) . Environment tem perature:-25 — +55℃;
2) . Air relative humidity: < 85%.
3) . Normal work when the vibration frequency is 2-80Hz,the acceleration is 0.79;
4) . Pollution grade is 3, installation sort is ill, protection grade is above Ip65.
5) . Altitude:2000 < m
