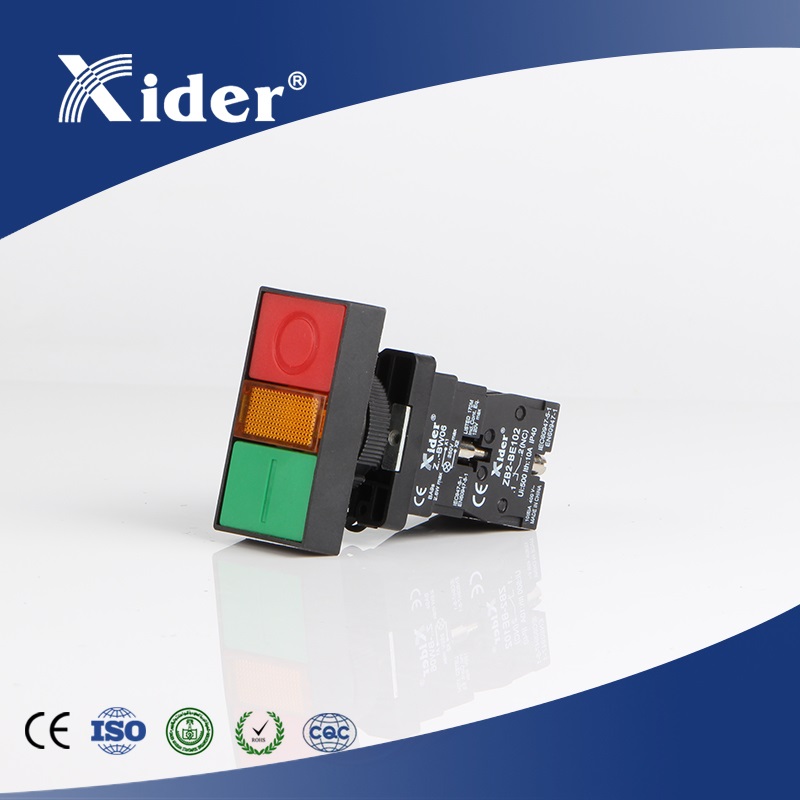

DB2-EW8365 Double square illuminated push button switch

XB2-EW8365 Direct Type Double square illuminated push button switch

Quick Details
Place of Origin: Zhejiang, China (Mainland)
Brand Name: XIDER
Model Number: DB2-EW8365
Protection Level: IP40
Max. Current: 10A
Max. Voltage: 220/240V
Color: Red Green
Certificate: CE RoHS
Operation type: Momentary
Material: Plastic

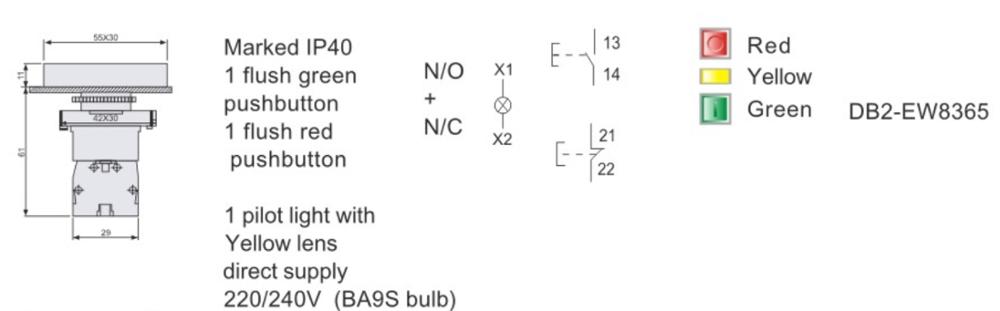

Function: N/O+N/C

Brief introduction
The push button series was used in control circuit of AC 50Hz or 60Hz,voltage to 660V, DC voltage up to 440V below, it is used for controlling signal and interlocking, The main body adopts zinc alloy or high grade anti-flaming plastic, the contact adopts special silver alloy, so it has strong anti-electrical erosion property, the signal lamp series is suitable for electrical appliance circuit of AC voltage 380V, 50Hz or 60Hz, DC voltage up to 380V below, it is used as kinds of lights indication signal, warning signal, accident signal and other signals. Our products comply with GB/T14048.1 and IEC60947-5-1, all products were get CE, RoHS certification.

XB2 Push Button Switch  Work environment
1) . Environment tem perature:-25 — +55℃;
2) . Air relative humidity: < 85%.
3) . Normal work when the vibration frequency is 2-80Hz,the acceleration is 0.79;
4) . Pollution grade is 3, installation sort is ill, protection grade is above Ip65.
5) . Altitude:2000 < m

Main technical parameter
