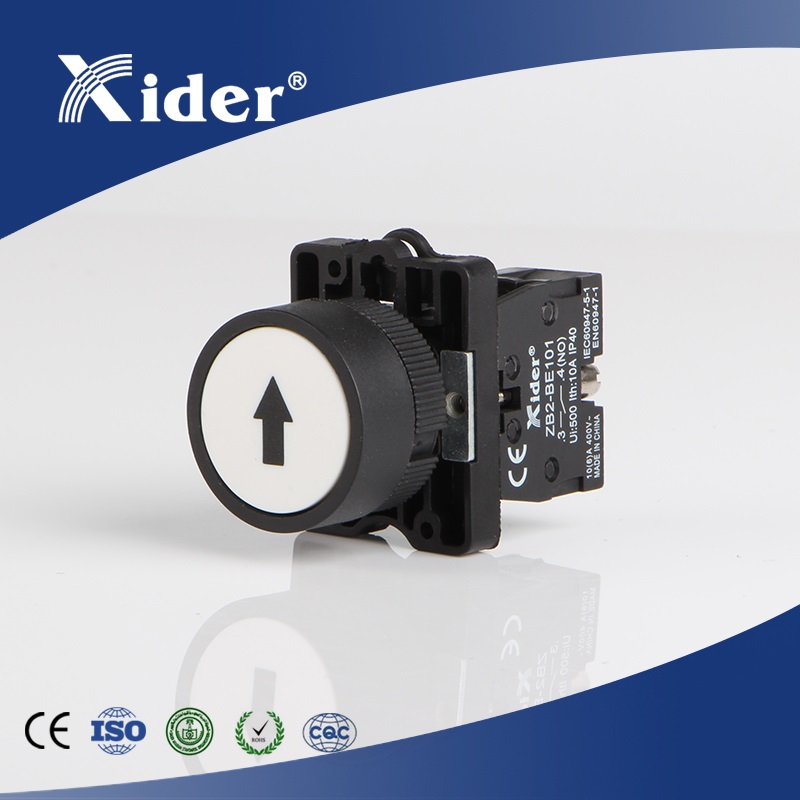

LAY5-EA3341 ABS Plastic Push Button Switch

1NO OR 1NC 10A Flush return maked Push Button Switch WITH UP SYMBOL

Quick Details
Place of Origin: Zhejiang, China (Mainland)
Brand Name: XIDER
Model Number: LAY5-EA3341
Protection Level: IP65
Max. Current: 10A
Max. Voltage: 660V
Certificate: CE, RoHS
Button color: White Black
Main Material: ABS Plastic
Operation type: Momentary
Contact Type: 1NO or NC

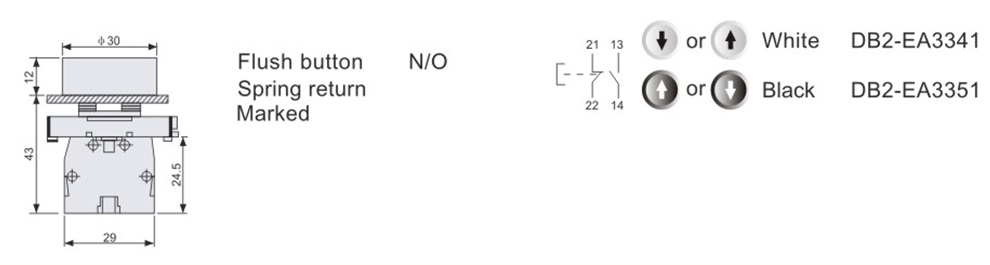

Product Size: see the imge

Brief introduction
The XB2 Push Button Switch was used in control circuit of AC 50Hz or 60Hz,voltage to 660V, DC voltage up to 440V below, it is used for controlling signal and interlocking, The main body adopts zinc alloy or high grade anti-flaming plastic, the contact adopts special silver alloy, so it has strong anti-electrical erosion property, the signal lamp series is suitable for electrical appliance circuit of AC voltage 380V, 50Hz or 60Hz, DC voltage up to 380V below, it is used as kinds of lights indication signal, warning signal, accident signal and other signals. Our products comply with GB/T14048.1 and IEC60947-5-1, all products were get CE, RoHS certification.

Work environment
1) . Environment tem perature:-25 — +55℃;
2) . Air relative humidity: < 85%.
3) . Normal work when the vibration frequency is 2-80Hz,the acceleration is 0.79;
4) . Pollution grade is 3, installation sort is ill, protection grade is above Ip65.
5) . Altitude:2000 < m

Main technical parameter
