XIDER Electric Co., Ltd. specializes in the production of low voltage electrical appliances such as buttons, indicator lights, electrical switches, sensors, etc. Our company provides ace products and services to customers in the fields of power, machinery, transportation and industrial automation. Next, introduce three of them.
product description

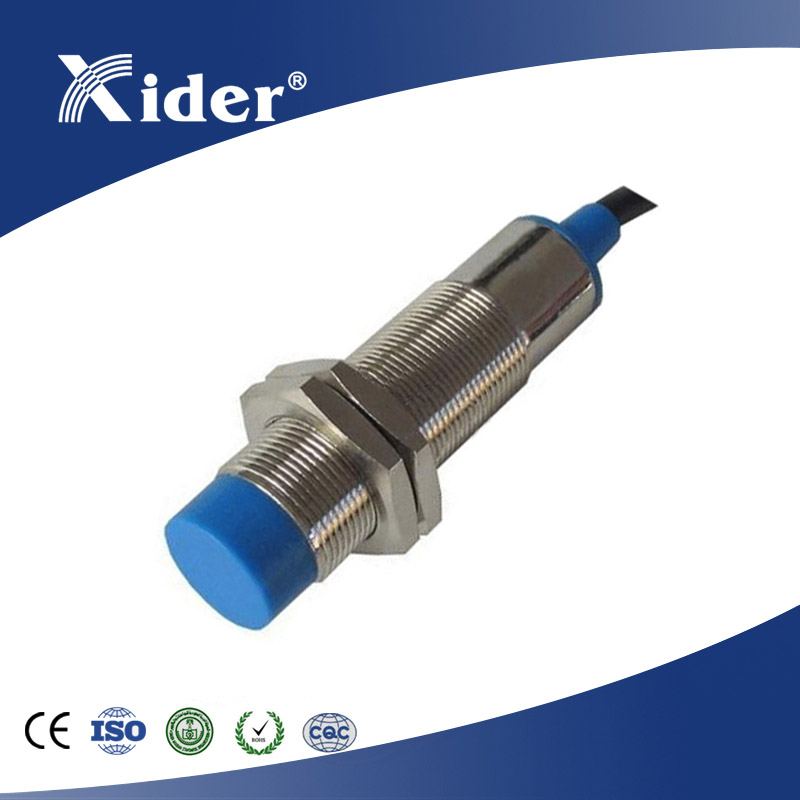

The position sensor can sense the position of the measured object and convert it into a sensor that can use the output signal. It is one of the three major components of the brushless DC motor system and is the main sign that distinguishes it from brushed DC motors. Its function is to detect the position of the main rotor during the movement, convert the position signal of the magnetic pole of the rotor magnet into an electrical signal, and provide correct commutation information for the logic switching circuit to control their conduction and cut-off, so that the motor armature The current in the windings is reversed in sequence as the rotor position changes, forming a stepwise rotating magnetic field in the air gap that drives the permanent magnet rotor to rotate continuously.
Product specifications
- Place of Origin:Zhejiang, China (Mainland)
- Brand Name:Xider
- Model Number:M12
- Usage:Position Sensor
- Theory:Inductance Sensor
- Output:Digital sensor
- Mounting:Flush or Non-flush
- Sensing distance:2mm or 4mm
- Power supply:10-30V DC 3/4 wires
- Frequency:1500Hz or 1000Hz
- Protection degree:IP67
- Housing material:Nickel-copper
- Connection:2m PVC cable or M12 connector
- Certificate:CE
- H.S code:903290
product description

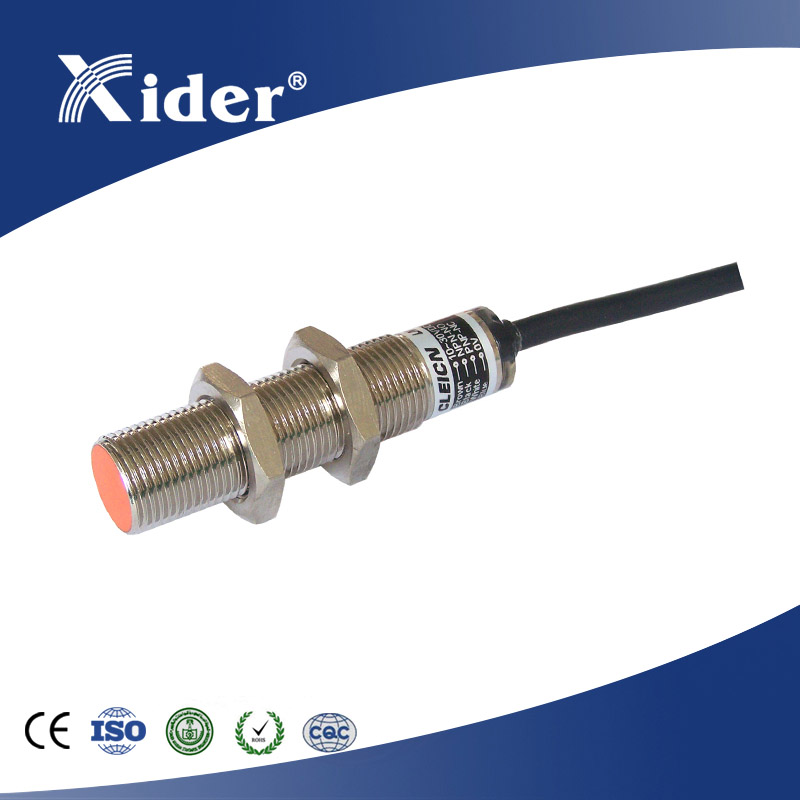

Inductive sensors are devices that use non-electrical electrical measurements to take advantage of changes in the coil's self-inductance or mutual inductance. Inductive sensors are used to measure parameters such as displacement, pressure, vibration, strain, and flow. It has a series of advantages such as simple structure, high sensitivity, large output power, small output impedance, strong anti-interference ability and high measurement accuracy, so it is widely used in electromechanical control systems.
Product specifications
- Place of Origin:Zhejiang, China (Mainland)
- Brand Name:Xider
- Model Number:M12
- Usage:Position Sensor
- Theory:Inductance Sensor
- Output:Digital sensor
- Mounting:Flush or Non-flush
- Sensing distance:2mm or 4mm
- Power supply:10-30V DC 3/4 wires
- Frequency:1500Hz or 1000Hz
- Protection degree:IP67
- Housing material:Nickel-copper
- Connection:2m PVC cable or M12 connector
- Certificate:CE
- H.S code:903290
product advantages
- 1. The structure is simple and reliable;
- 2. High sensitivity, the highest resolution is 0.1μm;
- 3. High measurement accuracy, output linearity can reach ±0.1%;
- 4. The output power is large. In some cases, it can be directly connected to the secondary instrument without amplification.
product description
Digital sensor refers to a sensor that adds or modifies a conventional analog sensor to a digital (or digital code) output signal, including: amplifier, A/D converter, and microprocessor. (CPU), memory, communication interface, temperature test circuit, etc., in today's microprocessors and sensors become cheaper, fully automatic or semi-automatic (high-level operation by manual instructions, automatic processing of low-level operations) system can Contains more intelligence features to get and handle more different parameters from its environment.
Product specifications
- Place of Origin:Zhejiang, China (Mainland)
- Brand Name:Xider
- Model Number:M12
- Usage:Position Sensor
- Theory:Inductance Sensor
- Output:Digital sensor
- Mounting:Flush or Non-flush
- Sensing distance:2mm or 4mm
- Power supply:10-30V DC 3/4 wires
- Frequency:1500Hz or 1000Hz
- Protection degree:IP67
- Housing material:Nickel-copper
- Connection:2m PVC cable or M12 connector
- Certificate:CE
- H.S code:903290
Features
- 1. Advanced A/D conversion technology and intelligent filtering algorithm can ensure the stability of the output code in the case of full scale.
- 2. Feasible data storage technology to ensure that module parameters are not lost.
- 3. Good electromagnetic compatibility.
- 4. The performance of the sensor adopts digital error compensation technology and highly integrated electronic components. The software comprehensively compensates the performance parameters such as linearity, zero point, temperature drift and creep of the sensor, which eliminates the influence of human factors on compensation and greatly improves the impact. Sensor comprehensive accuracy and reliability.
- 5. The output consistency error of the sensor can reach 0.02% or even higher, and the characteristic parameters of the sensor can be identical, so it has good interchangeability.
- 6. Adopting A/D conversion circuit, digital signal transmission and digital filtering technology, the anti-interference ability of the sensor is increased, the signal transmission distance is long, and the stability of the sensor is improved.
- 7, digital sensors can automatically collect data and can be pre-processed, stored and memorized, with a unique mark for easy troubleshooting.
- 8, the sensor uses a standard digital communication interface, can be directly connected to the computer, can also be connected with the standard industrial control bus, convenient and flexible.
Company information introduction
XIDER Electric Co., Ltd. has been committed to the development and manufacture of low-voltage electrical appliances since the company's inception. We have introduced high-tech signal lights: AD22 series and DB2-B / E, DB4-B, DB5-A buttons, DB7-E, XAL -D developed these products. XIDER takes “exquisite buttons and builds XIDER brand” as our service concept and development goal. The company brand and corporate image are rooted in the core of the people and the project. Now the company has established a complete sales network throughout the country, and its products are exported to Europe, America and Southeast Asia.
Office Phone: + 86-577-61723801
Mobile: 15158476179
Email: julia.yefan@xider.cc
