product description
Basic classification of warning lights
The warning lamp installation shape features can be divided into: combined long row warning lights, combined tower warning lights, small types of warning lights, etc.
1. Single warning light
- 50mm: Φ50mm single-type single light warning light Φ50 high single-type single light warning light
- Φ22 mounting hole single light warning light
- Φ22 mounting hole sound and light integrated warning light
- 70mm: Φ70 single-type single light warning light
- Φ70 high single-type single light warning light
- 90mm: Φ90 single-type single light warning light
- Φ90 single-unit sound and light integrated warning light Φ90 cylindrical single-type single light warning light
- Φ90 cylindrical single sound and light integrated warning light
- 150mm: Φ150mm single-type single light warning light
- Φ150mm single-type sound and light integrated warning light
2. Combined warning light
- 50mm: Φ50 combined warning light component
- Φ50 combined warning light component
- 70mm: Φ70 combined warning light component
- Φ70 combined warning light component
- 90mm: Φ90 combined warning light component
- Φ90 combined warning light sound component signal indicator is also called alarm light, warning light, signal light.

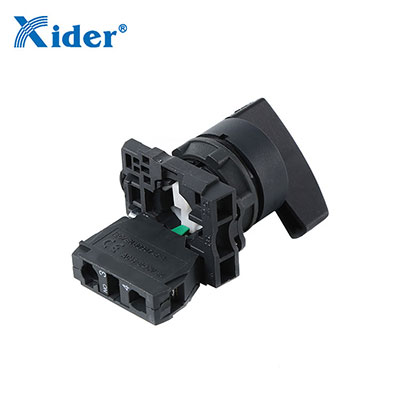

There are many types of push button switches, which can be divided into ordinary button type, mushroom head type, self-locking type, self-resetting type, rotary handle type, with indicator light type, illuminated symbol type and key type, etc. Button, i button and different combinations. Generally, it adopts a water-storage structure, which consists of a button cap, a return spring, a static contact, a moving contact and a casing. It is usually made into a composite type, and has a pair of normally closed contacts and normally open contacts, and some products can pass. The series connection of multiple components increases the number of contact pairs. There is also a self-contained button that automatically holds the closed position when pressed, and can be turned on after the power is turned off.
In actual use, in order to prevent misoperation, different marks are usually made on the buttons or painted with different colors, and the colors thereof are red, yellow, blue, white, black, green, and the like. Normally red means "stop" or "dangerous" operation; green means "start" or "on". The emergency stop button must use the red mushroom head button. The button must have a metal guard ring and the retaining ring should be higher than the button cap to prevent accidental actuation of the button and cause malfunction. The button plate and button box of the mounting button must be metal and connected to the mechanical main ground bus.
