Product Description

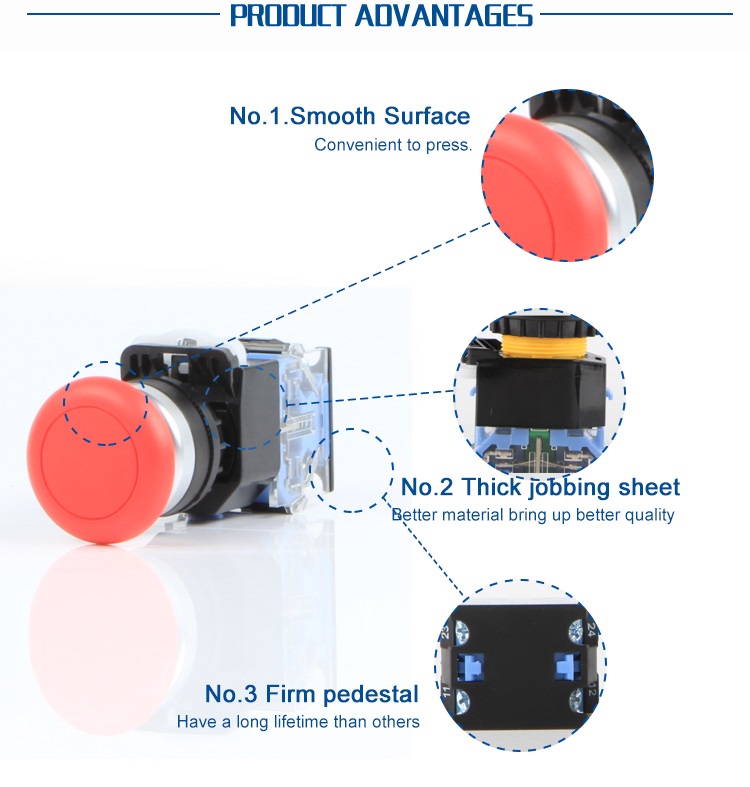

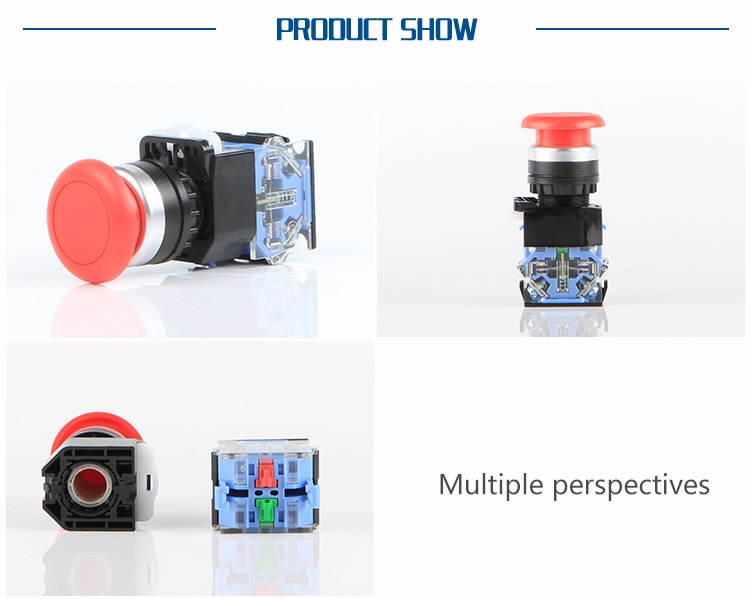

LA38 series , 10A industrial control circuits momentary mushroom spring return pushbutton switch
Quick Details
Place of Origin: Zhejiang, China (Mainland)
Brand Name: XIDER
Model Number: LA38 mushroom 1
Protection Level: IP40(IP65)
Max. Current: 10A
Max. Voltage: 220/240V
Color: Red Green
Certificate: CE RoHS
Operation type: Momentary,latching
Material: Plastic Function: N/O+N/C
Push Button Switch Main technical parameter
1) . Mounting Hole Size :Φ22mm
2) . Switch Rating:5A/250VAC
3) . Contact Configuration:1NO1NC
4) . Operation Type: Momentary, Latching
5) . The Crust Material:Stainless Steel
6) . Protection Degree:IP40, ( IP65 Can be made to order )
| Working temperature | (-25°C ~ +55°C) No frozen The around of light switch body must be airiness |
| Work environment humidity | 45-85%RH Non condening |
| Contact material | Silver cadmium oxideS ilver plated gold plating thickness |
| Contact resistance | ≤50mΩ |
| Insulation resistance | ≥100mΩ |
| Contact between lamp bead pin | 2000V,AC50Hz,1min |
| Between same class terminal | 1000V,AC50Hz,1min |
| Between different electrode terminal | 2000V,AC50Hz,1min |
| Vibration proof | 50HZ,Amplitude about 1.2mm |
| Impact resistance | Greater than 10g |
| Mechanical Life | 1,000,000 times |
| Electric Life | Above 30,000 times |
| Dia of welding | Dia of welding line 2×0.85 |
| Max copper wire area | Max copper wire area 0.75mm2 |
| Wiring insert: | Wiring insert:2.8 0.5mm |
| Operating distance | button about 3mm |
